Home ProductsElectric Mini Car

Neighborhood Smart Electric Car Windscrean Wiper Reverse Button Disc Brake

Good quality Electric Motor Scooter for sales
Good quality Electric Motor Scooter for sales
we have cooperate with this company many years , everything goes very well.l like opai.very good quality.

—— Nolberto-Brazil

this is the third order l buy this company ,quality is very good ,very big factory .we will go on ccooperate with this company .

—— Artem Kunitsyn-Russia

Good service and communication,friendly seller.i like.

—— Ajay berry-Indian

We meet this factory during fair,test their quality and receive our samples recently,very fast delivery.we will place order very soon.

—— Steve PAKIRY-France

I'm Online Chat Now

Neighborhood Smart Electric Car Windscrean Wiper Reverse Button Disc Brake

China Neighborhood Smart Electric Car Windscrean Wiper Reverse Button Disc Brake supplier

Large Image :  Neighborhood Smart Electric Car Windscrean Wiper Reverse Button Disc Brake

Product Details:

Place of Origin: China
Brand Name: OPAI (OEM is acceptable)
Certification: Can be with EEC
Model Number: OP-YOYO

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: Packed in iron frame, reinforced with carton for outer packing
Delivery Time: 7 days for sample; 25-30 days for mass production
Payment Terms: T/T; L/C; western Union
Supply Ability: 30000 pcs per month
Detailed Product Description
Product Name: 3-wheel Electric Mini Car Application: E-Vehicle, New Energy, Street Road
Max Speed: 35km/h (1000w); 45km/h(2000w) Range Distance: 50km (60v30ah); 80km(60v50ah)
Motor Power: 1000W /2000W DC Brushless Motor Battery: 60V/30AH,60V50AH
Standard: E-mark Feature: 1)Aluminum Alloy Wheel; 2)Polycarbonate High Light Headlight; 3)High-strength Polycarbonate Windshield; 4) Disc Brake For Three Wheels; 5) LED Digital Display&LED Taillight
Battery Brand: Chaowei Or Tianneng Tire: 1)Aluminum Alloy Wheel; 2)Polycarbonate High Light Headlight; 3)High-strength Polycarbonate Windshield; 4) Disc Brake For Three Wheels; 5) LED Digital Display&LED Taillight

Three wheel Electric Mini Car 1KW 2KW 60V20AH 60V 30AH 60V50AH Windscream Wipper Reverse Button Disc Brake

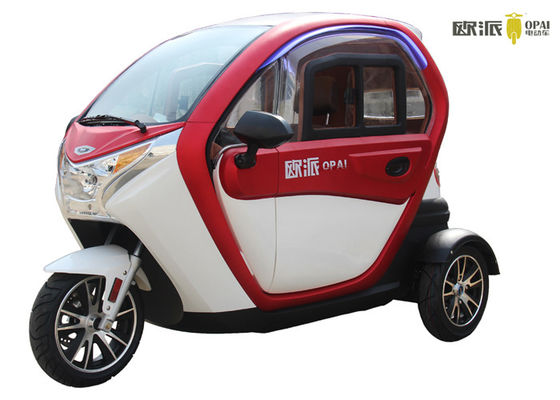

3-wheel electric mini car OP-YOYO





Specifications:

Dimension(L*W*H ): 2350*1200*1550mm
Axle distance (mm): 1680mm
Min.Ground distance (mm): 140mm
Motor: 1000W /2000W DC Brushless motor
Controller: 60v 15t 120 35A
Battery: 60V/30AH,60V50AH
Max.Speed : 35km/h (1000w); 45km/h(2000w)
Range per charge: 50km (60v30ah); 80km(60v50ah)
Consume /100km: ≤2.2 kw/h
Max.Torque (N.m): 1000 N/m
Charging time: 8~9H
Recharge Cycles (times): 300~350 times
Weight (Without battery): 255KGS.
Max. Loading: 300kgs
Input : 110V~230V 50-60 Hz
Tire:

F: 130/60-13 R: 135/70R12 CST tubeless



Brake: Fr: disc, R: double disc
Shock absorber: 36T hydraulic front fork







Description:



Selling points:

1)Aluminum alloy wheel;

2)Polycarbonate High light headlight;

3)High-strength Polycarbonate windshield;

4) Disc brake for three wheels;

5) LED digital display&LED taillight



Business Items:

2. Terms of Trade: FOB, CIF, CFR, EXW, etc.

3. Payment terms: a.) TT (30% as for down payment before production, the rest will be paid against copy of BL)b.) L/C at sight.

4. MOQ:

a) If without brand or with OPAI brand: 1*40HQ (max 4 models mixed) or 1*20GP (max 2 models mixed).

b) If with customer's brand(OEM): 1*40HQ per model. If less than 1*40HQ per model, there will be OEM fee USD100/model.

5. Color: Optional.

6. Delivery Time (Lead time):

a) If without brand or with OPAI brand: within 30 working days after receiving deposit or L/C.

b) If with customer's brand(OEM): within 45 working days after receiving deposit or L/C.

c) For regular order after the 1st order, the delivery date will be with 25 working days after receiving deposit or L/C.

7. FOC: 1%

8. Warranty period: (Start from the date receiving the goods)Battery/motor/controller/charger: 1 year for lead acid battery; 2 years for lithium battery, Other parts: 6 months.





Dimention:

Neighborhood Smart Electric Car Windscrean Wiper Reverse Button Disc Brake





Feature:

Neighborhood Smart Electric Car Windscrean Wiper Reverse Button Disc Brake

Neighborhood Smart Electric Car Windscrean Wiper Reverse Button Disc Brake



Tips for battery using as follows:
1: Shall we charge the batteries as soon as receiving new e-scooters?
Re:Yes, it must be. Pls check the battery production date, it should be about 2 months or longer time from the date the battery produced to the date you receive the goods. So when you receive the goods, you or your dealers should charge the batteries in time for about 10 hours until it's fully charged for the first time.
2. How to keep it if we don't drive the e-scooter for a long time?
Re: The e-scooter must be fully charged, and the air switch must be turned off, besides, the e-scooters should be recharged every 1~2 months.
3. What will be happened when using the e-scooters in Winter season?
Re: You will find that the rang per charge in winter season is shorter than that of other season. It's normal phenomenon. So, when using the e-scooter in winter season, pls don't keep the e-scooter in the open air overnight and don't charge the e-scooter in very low temperature.
4) What should be noticed when using the e-scooter in summer season?
Re: Pls don't keep the e-scooter under the strong sunlight, and don't charge the e-scooter under high temperature.
Don't charge the e-scooter immediately after driving it under high temperature, and don't charge it too long time (Normally about 8 hours)
5) Can we go on driving the e-scooter when the battery power is low?
Re: No, it will be harmful to battery lifetime, you must charge the battery in time.
6) Is it harmful to battery if it's over charged?
Re: The batteries can be swollen and the battery lifetime will come to en end in advance If keeping using poor quality or unmatched charger or charging the battery too long time.
7) When is the best time to recharge the battery?
Re: When it shows to or close to the "L" (low)place on the display, It will be the best time to recharge the battery.
8) Is it possible to change only one or two pcs of the battery for replacement?
Re: In a e-scooter, it should be a full set of battery ( 4 or 5 or 6 pcs together), if one or two pcs break down, the full set of batteries must be replaced together, but not only changing single pc.
9) Can be the charger keeping with the e-scooter?

Re: Not suggested. The e-scooter will be shake on rough road, if with charge in it, the charge will be shake as well, then the components in the charger will be drifting, it will influence the charging performance even make the battery damaged ( undercharge or swollen) .





OPAI Tech., established in 2003, is a large-scaled professional and modern manufacturing enterprise specialized in electric vehicles with brand “OPAI” in China.With headquarters in Wuxi and four branch production bases in Tianjin, Xuzhou Jiangsu, Taizhou Zhejiang and Dongguan Guangdong, OPAI Tech. covers an area of more than 150,000 square meters and with more than 1,500 employees. The annual production capacity is 1,5 million units of 2-wheel e-motorcycle /e-scooter / e-bike and 0.2 million units of e-tricycles/special e-vehicles. With about 1500 sales outlets covering 30 provinces and cities in domestic market, OPAI is also making active exploration on the oversea market.

Neighborhood Smart Electric Car Windscrean Wiper Reverse Button Disc Brake
