Product Details:
Payment & Shipping Terms:
|
Max Speed: | 45-50 Km/h | Motor Power: | 800w / 1500w / 2000w |
---|---|---|---|
Standard: | CCC | Range Distance: | 80 Km |
Battery: | 60V/20AH, 60V30AH 72V/20AH Lead Acid Battery | Feature: | Long Range |
Battery Brand: | Chaowei Or Tianneng | Tire Brand: | CST |
High Light: | long distance electric scooter,electric road scooter |

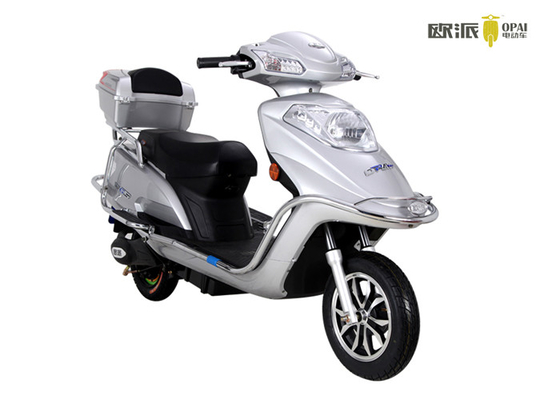

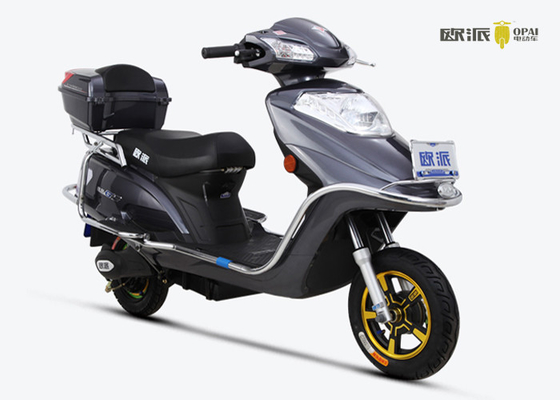

Big Rear Box Long Range Electric Scooter 72V45AH Lead Acid Battery 100km Big Size Double Seats
OPF-EM031 LONG RANGE DISTANCE DOUBLE REMOTE DOULE ALARM MODEL
Item | Name | Spec. | |
1 | Model | OPF-EM031 | |
2 | Dimension | 2040×700×1180 | mm |
3 | Wheel center distance | 1430 | mm |
4 | Clearacen from ground | 160 | mm |
5 | Weight | 127(72V20AH) | Kg |
6 | Weight without battary | 64 | Kg |
7 | Loading | ≤75 | Kg |
8 | Max speed | 50 | Km/h |
9 | Range distacne | ≥100 | Km |
10 | Acceleration performance (100m) | 12 | s |
11 | Climbing | 10° | 0 |
12 | Front Head Light Intensity | 4000 | cd |
13 | Turning angle | Left 43° Right 44° | 0 |
14 | Braking Way | Hand brake | |
15 | Transmission Way | ﹨ | |
16 | Brake distance(Dry condition) | 3 | m |
17 | Brake distance (wet condition) | 12 | m |
18 | Brake | Front and rearφ110 Drum brake | |
19 | Wheel hub(Front/Rear) | 10 inches alloy wheel | |
20 | Tire(Front/Rear) | 14×3.2 Vacuum Tire | |
21 | Tire Pressure(Front/Rear) | 250 | Kpa |
Motor | ||||
1 | Motor Type | 10inches 800W-2000W C35 motor | ||
2 | Power | 800-2000W | W | |
3 | Revolving speed | (520±10) | r/min | |
4 | Voltage | 60/72V | V | |
5 | motor efficiency | ≥88% | ||
Controller | ||||
1 | long voltage protection | 52±0.5 | V | |
2 | Overcurrent protection | 30±1 | A | |
3 | Voice Alarm function | Double remote double flash alarm | ||
Charger | ||||
1 | Voltage | 220/110 | V | |
2 | Power | 50 | Hz |
Description:
1. Double Remote ; Double alarm
2. Long range distance ,more than 100km per charge
3. Shocker absorber: Front - 30T hydraulic fork ;
4. Controller: 12T/15T
5. Color: Optional
6. Delivery time /leading time: a) Within 20-25 working days after receiving deposit or L/C for 5000 units.
7. Warranty period: Starting from the date receiving the goods
8. Battery/motor/controller/charger: 1 year for lead acid battery; 2 years for lithium battery
9. Other parts: 6 months.
OPAI Product Range:
Electric Scooter : Powerful Electric Scooter, Long Range Electric Scooter, Classics E-scooter, Pedal Assisted E-scooter, Mini Electric Scooter, EEC Electric Scooter , Hot sold Electric Scooter, Electric Motor Scooter, Electric Moped Scooter
Electric Motorcycle : EEC / EC Electric Motorcycle, Powerful Electric Motorcycle, Electric Sport Motorcycle, Long Range Electric Motorcycle, Cool Electric Motorcycle, New design Electric Motorcycle
Electric Bike: CE /EN15194 E-bike, Adult Electric Bike, E-bike with rear box, Electric Bike with Front Basket, E-bike with Pedal or Without Pedal, Foldable Electric Bicycle, Electric Mountain Bike, Electric Lady bike
Electric Balancing Scooter: Single Wheel Electric Balancing Scooter, 2-wheel Electric Smart Scooter
Electric Tricycle: Electric Mobility Scooter, 3-wheel E-trikes , 4-wheel Electric Mobility Scooter, Single Seat E-tricycle, Double Seats Electric Tricycle, Big Power Electric Tricycle, Cargo Electric Tricycle, Cargo Electric Trikes
Electric Mini Car: 3-wheel/ Double Seats Electric Mini Car, 4-wheel / 4 Seats Electric Mini Car
Motor Power: 350W~3000W (350W, 500W, 650W, 800W, 1KW, 1.5KW,2KW
Battery: 48V-72V 12AH-60AH (48V12AH, 48V20AH, 60V20AH, 60V30AH, 72V20AH, 72V28AH, 72V30AH, 72V32AH, 72V45AH, 72V60AH) Lead Acid Battery / Lithium-ion /LiFePO Battery (Chaowei or Tianneng Brand)
Brake(F/R): Disc / Drum, Disc / Disc, Drum / Drum, Drum / Expanding
Tire Size: 3.0-10, 14*3.2, 16*2..4, 17*2.125, 90/90-12, 14*2.5,2.75-10, 90/90-12 120/70-12, 130/60-13
Tire Brand: CST, Chaoyang, Yuanxin
