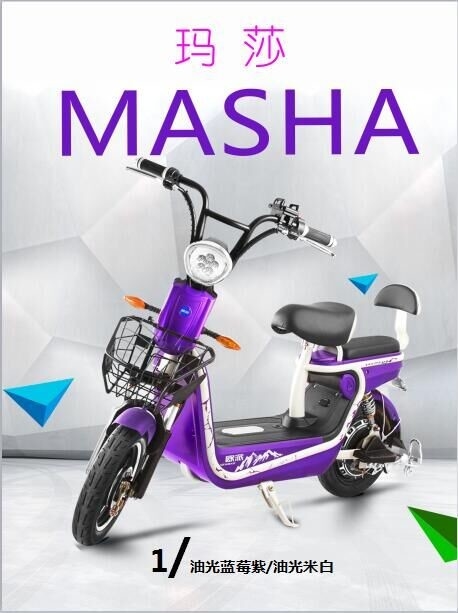

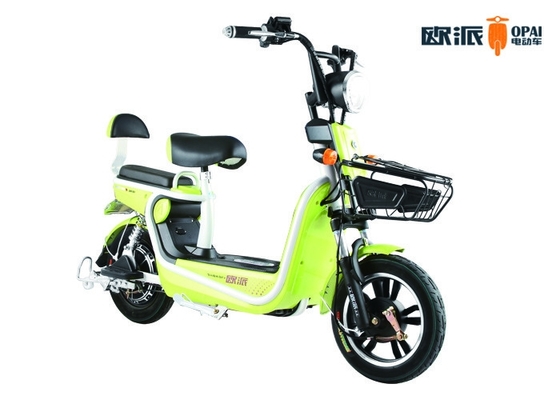

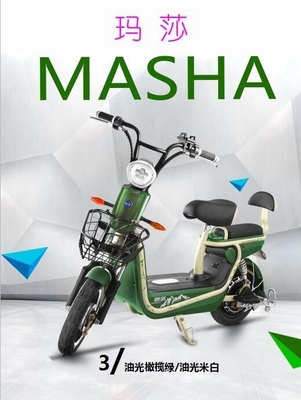

Front Fork Electric Moped Scooter For Adults 14 Inches Motor

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Front Fork Electric Moped Scooter For Adults 14 Inches Motor Get Best Price

Product Details:
Place of Origin: China
Brand Name: OPAI
Certification: CE/EEC/DOT
Model Number: OP-TBS023
Payment & Shipping Terms:
Minimum Order Quantity: One Sample Is Welcome
Price: negotiation
Packaging Details: Packed in iron frame frame,then reinforced with carton for outer packing
Delivery Time: 7 days for sample; 25-30 days for mass production
Payment Terms: T/T; L/C; western Union, T/T
Supply Ability: 50000 pcs per month
Detailed Product Description
Application: Electric Moped Scooter Max Speed: 30-40 Km/h
Range Distance: 50-60 Km Motor Power: 350W / 500W
Battery: 48V/12AH;48V/20AH Standard: CE/EEC/DOT
Battery Brand: Chaowei Or Tianneng Tire Brand: CST
High Light:

adult electric moped

,

electric bicycle scooter

Tianneng or Chaowei Battery L/S/H 3 Speed USB Mobile Phone Holder Electric Moped Scooter 350W Bicycle

OP- TBS023 Electric Moped Scooter available for all people





Battery : 48V 20AH/12AH
Motor : 48V 350W 14 inches motor
Controller: 6 Tubes
Tire: 14''*1.95
Brake: Front Drum brake,Rear Brake with Lock
Front Fork: 42 tubes front fork


Item Name Spec.
1 Model OP-TBS023
2 Dimension 1500*600*1000 mm
3 Weight 55 Kg
4 Weight without battary 35 Kg
5 Loading 75 Kg
6 Max speed 28 Km/h
7 Range distacne ≥45 Km
  Motor
1 Motor Type 48V60° 14″×2.5
2 Power 350-800W
3 motor efficiency ≥85%























Description:

  • 1. LED headlight
  • 2. Shocker absorber: Front - 42T front fork
  • 3. L/M/H 3 speed
  • 4. 48V 20AH/12AH 350W/ 500W motor with sine wave control system,fast speed long range distance.
  • 5. Color: Optional
  • 6. Delivery time /leading time: a) Within 20-25 working days after receiving deposit or L/C for 5000 units.

Front Fork Electric Moped Scooter For Adults 14 Inches MotorFront Fork Electric Moped Scooter For Adults 14 Inches MotorFront Fork Electric Moped Scooter For Adults 14 Inches Motor







Front Fork Electric Moped Scooter For Adults 14 Inches Motor


Tips for battery using as follows:

1: Shall we charge the batteries as soon as receiving new e-scooters?

Yes, it must be. Pls check the battery production date, it should be about 2 months or longer time from the date the battery produced to the date you receive the goods. So when you receive the goods, you or your dealers should charge the batteries in time for about 10 hours until it's fully charged for the first time.

2. How to keep it if we don't drive the e-scooter for a long time?

The e-scooter must be fully charged, and the air switch must be turned off, besides, the e-scooters should be recharged every 1~2 months.

3. What will be happened when using the e-scooters in Winter season?

You will find that the rang per charge in winter season is shorter than that of other season. It's normal phenomenon. So, when using the e-scooter in winter season, pls don't keep the e-scooter in the open air overnight and don't charge the e-scooter in very low temperature.

4) What should be noticed when using the e-scooter in summer season?

Pls don't keep the e-scooter under the strong sunlight, and don't charge the e-scooter under high temperature.

Don't charge the e-scooter immediately after driving it under high temperature, and don't charge it too long time (Normally about 8 hours)

5) Can we go on driving the e-scooter when the battery power is low?

No, it will be harmful to battery lifetime, you must charge the battery in time.

6) Is it harmful to battery if it's over charged?

The batteries can be swollen and the battery lifetime will come to en end in advance If keeping using poor quality or unmatched charger or charging the battery too long time.

7) When is the best time to recharge the battery?

When it shows to or close to the "L" (low)place on the display, It will be the best time to recharge the battery.

8) Is it possible to change only one or two pcs of the battery for replacement?

In a e-scooter, it should be a full set of battery ( 4 or 5 or 6 pcs together), if one or two pcs break down, the full set of batteries must be replaced together, but not only changing single pc.

9) Can be the charger keeping with the e-scooter?

Not suggested. The e-scooter will be shake on rough road, if with charge in it, the charge will be shake as well, then the components in the charger will be drifting, it will influence the charging performance even make the battery damaged ( undercharge or swollen) .





Front Fork Electric Moped Scooter For Adults 14 Inches Motor



Front Fork Electric Moped Scooter For Adults 14 Inches Motor
