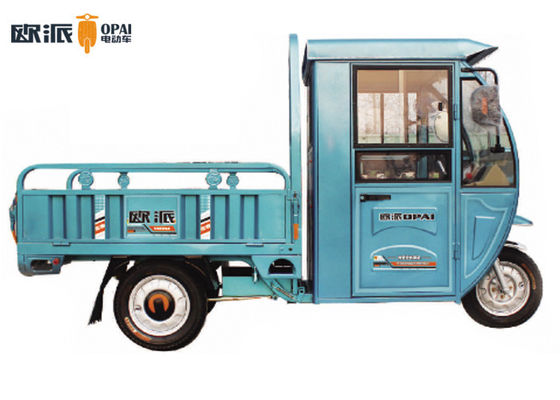

Covered Three Rounds Electric Cargo Trike 18 Pipes Controller With LCD Speedmeter

large.img.alt
small.img.alt small.img.alt

Large Image :  Covered Three Rounds Electric Cargo Trike 18 Pipes Controller With LCD Speedmeter Get Best Price

Product Details:
Place of Origin: China
Brand Name: OPAI (OEM is acceptable)
Certification: Can be with EEC
Model Number: OP-ET004
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: Packed in iron frame, reinforced with carton for outer packing
Delivery Time: 7 days for sample; 25-30 days for mass production
Payment Terms: T/T; L/C; western Union
Supply Ability: 30000 pcs per month
Detailed Product Description
Product Name: 3-wheel Electric Mini Car Application: E-Vehicle, New Energy, Farm, Countryside
Max Speed: 30km/h (1000w) Range Distance: 50KM
Motor Power: 800W / 1.5KW Battery: 48V / 60V 30AH~45AH
Battery Brand: Chaowei Or Tianneng Tire: 350-12 / 370-12 CST Tire
High Light:

electric trike bike

,

electric cargo bike

Covered Three Rounds Electric Cargo Trike OP-ET004 800W 48V 30AH ~45AH E-TRICYCLE Cargo Tricycle



Specifications:



MODEL NO.: OP-ET004
1 Battery: 48V/60V 30AH~45AH
2 Motor: 48V/60V 800W
3 Controller: 48V/60V 18 Pipes
4 Speedmeter: LCD
5 Tire (F/R): 350-12 / 370-12 CST Tire
6 Brake (F/R): 110 Drum / 160 Drum
7 Dimension 3220*1100*1370mm
8 Hopper Size: 1650*1100*495mm
9 Wheelbase 1955mm
10 Ground Clearance 205mm



Covered Three Rounds Electric Cargo Trike 18 Pipes Controller With LCD SpeedmeterCovered Three Rounds Electric Cargo Trike 18 Pipes Controller With LCD Speedmeter

Tips for battery using as follows:
1: Shall we charge the batteries as soon as receiving new e-scooters?
Re:Yes, it must be. Pls check the battery production date, it should be about 2 months or longer time from the date the battery produced to the date you receive the goods. So when you receive the goods, you or your dealers should charge the batteries in time for about 10 hours until it's fully charged for the first time.
2. How to keep it if we don't drive the e-scooter for a long time?
Re: The e-scooter must be fully charged, and the air switch must be turned off, besides, the e-scooters should be recharged every 1~2 months.
3. What will be happened when using the e-scooters in Winter season?
Re: You will find that the rang per charge in winter season is shorter than that of other season. It's normal phenomenon. So, when using the e-scooter in winter season, pls don't keep the e-scooter in the open air overnight and don't charge the e-scooter in very low temperature.
4) What should be noticed when using the e-scooter in summer season?
Re: Pls don't keep the e-scooter under the strong sunlight, and don't charge the e-scooter under high temperature.
Don't charge the e-scooter immediately after driving it under high temperature, and don't charge it too long time (Normally about 8 hours)
5) Can we go on driving the e-scooter when the battery power is low?
Re: No, it will be harmful to battery lifetime, you must charge the battery in time.
6) Is it harmful to battery if it's over charged?
Re: The batteries can be swollen and the battery lifetime will come to en end in advance If keeping using poor quality or unmatched charger or charging the battery too long time.
7) When is the best time to recharge the battery?
Re: When it shows to or close to the "L" (low)place on the display, It will be the best time to recharge the battery.
8) Is it possible to change only one or two pcs of the battery for replacement?
Re: In a e-scooter, it should be a full set of battery ( 4 or 5 or 6 pcs together), if one or two pcs break down, the full set of batteries must be replaced together, but not only changing single pc.
9) Can be the charger keeping with the e-scooter?
Re: Not suggested. The e-scooter will be shake on rough road, if with charge in it, the charge will be shake as well, then the components in the charger will be drifting, it will influence the charging performance even make the battery damaged ( undercharge or swollen) .

Covered Three Rounds Electric Cargo Trike 18 Pipes Controller With LCD Speedmeter

1. Terms of Trade: FOB (SHANGHAI)
2. Paymentterms:
a.) TT (30% as for down payment before production, the rest will be paid agaisnt copy of BL)
b.) L/C at sight.
3. MOQ:
a) If without brand or with OPAI brand: 1*40HQ (max 4 models mixed) or 1*20GP (max 2 models mixed).
b) If with customer's brand(OEM): 1*40HQ per model. If less than 1*40HQ per model, there will be OEM fee USD100/model.
4. Color: Optional.
5. Delivery Time (Lead time):
a) If without brand or with OPAI brand: within 30 working days after receiving deposit or L/C.
b) If with customer's brand(OEM): within 45 working days after receiving deposit or L/C.
c) For regular order after the 1st order, the delivery date will be with 25 working days after receiving deposit or L/C.
6. FOC: 1%
7. Warranty period: (Start from the date receiving the goods)
Battery/motor/controller/charger: 1 year for lead acid battery; 2 years for lithium battery
Other parts: 6 months.





Covered Three Rounds Electric Cargo Trike 18 Pipes Controller With LCD Speedmeter
